1*16 Optical PLC Splitter 1x16 ABS Box Fiber Splitter 0.9mm 2.0mm 3.0mm
KCO-ABS-1x16-2.0-SCA
Descriptions:
- Planar Lightwave Circuit (PLC) Optical Splitters
- With a more recent technology, the PLC splitter (See Figure 3) provides a better solution for applications with larger split configurations.
- In the manufacturing process of PLC optical splitters, the waveguides are fabricated by using lithography onto a silica glass substrate, which allows for routing specific percentages of light.
- As a result, the PLC splitter offers very accurate splits with minimal loss in an efficient package.
- With the rapid growth of FTTx worldwide, the requirement for larger split configurations (1x32, 2x64, etc.) in these networks has also grown in order to serve mass subscribers.
- Due to its performance benefit of larger split configurations, the PLC splitter is more commonly used in the network where the split configuration is larger than 1x4.
Features:
- Optical Signal Distribution
- Passive Optical Network(PON)
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications
- LAN
- CATV System
- FTTX Deployment
- FTTH Network
Applications:
- FTTx (FTTB, FTTH, FTTC)
- Passive optical networks (PON)
- Local area networks (LAN)
- CATV systems
- Test equipments
Introduction:
- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....
- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.
- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.
Specifications:
| Fiber length | 1m or custom length |
| Connector Type | Custom specified |
| Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized |
| Directivity (dB) Min * | 55 |
| Return Loss (dB) Min * | 55 (50) |
| Power Handling (mW) | 300 |
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Operating Temperature(°C) | -40~ +85 |
| Storage Temperature(°C) | -40 ~ +85 |
| Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
| Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
| Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
| Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
| Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
| Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
| Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
| Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |

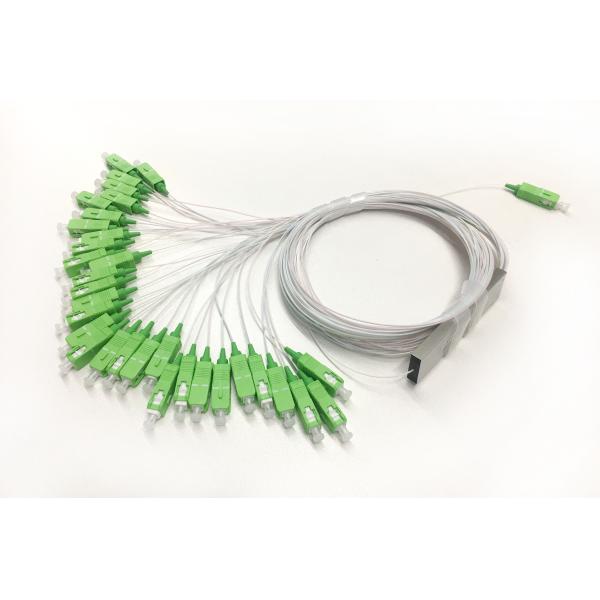

Product photos:
Relation products:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
